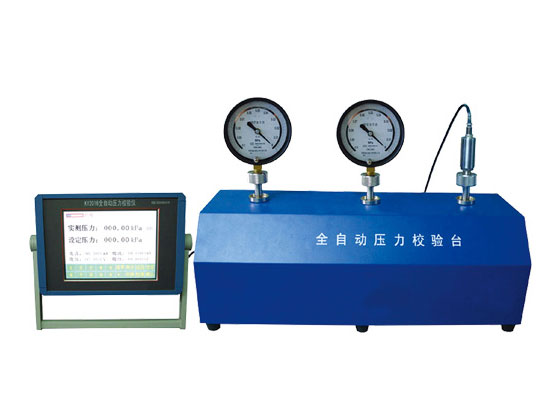

DTY2016 automatic pressure calibration station
Technical parameters
? Pressure building range: (-0.1 ～ 0) MPa air (0 ～ 6) MPa air (0 ～ 70) MPa oil
? Three output connector:connect external standard pressure module, and connect 2 pieces of inspected table at the same time;
? Two-way current measurement: (0 ～ 25) mA accuracy: 0.02% R.D + 0.005% F.S
? Two-way voltage measurement: (0 ～ 25) V accuracy: 0.02% R.D + 0.005% F.S (when the medium is oil or water)
? Two-way voltage measurement: (0 ～ 50) V accuracy: 0.02% R.D + 0.005% F.S (when the medium is vacuum or air)
? DC 24V power supply: It can be used to supply power to multiple pressure transmitters simultaneously (load ≤500mA)
? Switch measurement: automatic measurement of pressure switch on and off
? Display resolution: current, voltage 6 bits, pressure 5 bits
? Pressure accuracy level: 0.05% F.S Pressure control fluctuation rate: 0.01% F.S Last digit ± 1 character
? Power supply: AC220V + 10% / 50Hz
